MONOPOLE EVOLUTION TRIBAND UFL f - P/N 8610123
TECHNOLOGIE:
GSM / UMTS / LTE
-
WIFI
ANWENDUNG:
M2M / TLC / IoT Antennas

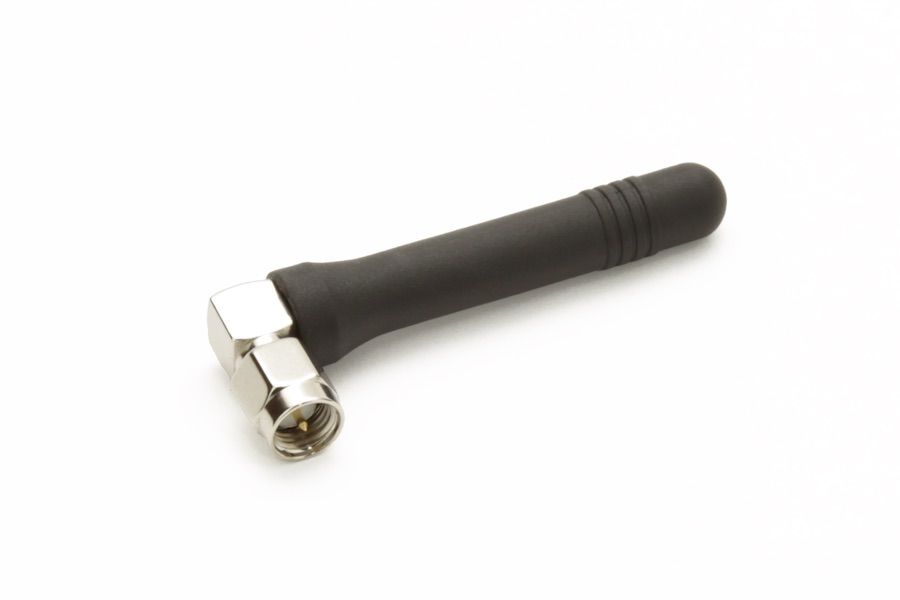

MONOPOLE EVOLUTION TRIBAND ANTENNA UFL fCONNECTOR
The omnidirectional Monopole Evolution antenna is designed to use in triband ( 2G / 3G) devices. The very resistant and U.V. stabilized plastic material has the right characteristics for industrial devices like modem for alarm, remote controls and Internet of Things (IoT), Machine To Machine devices.
GSM, UMTS, WiFi, Bluetooth Omnidirectional Antenna
Frequenzen
GSM 890-960
DCS 1.710-1.880 MHz
UMTS 1.885 - 2.200 MHz
WiFi - Bluetooth 2.400 - 2.500 MHz
Gewinn2,1 dBi
Maximale leistung 2,5W (CW)
VSWR GSM TX < 2:1 RX < 2:1
Steckverbinder UFL f On Device Mount
Gesamtabmessungen ø9,5 mmHeight=61 mm
Gewicht 12 g
