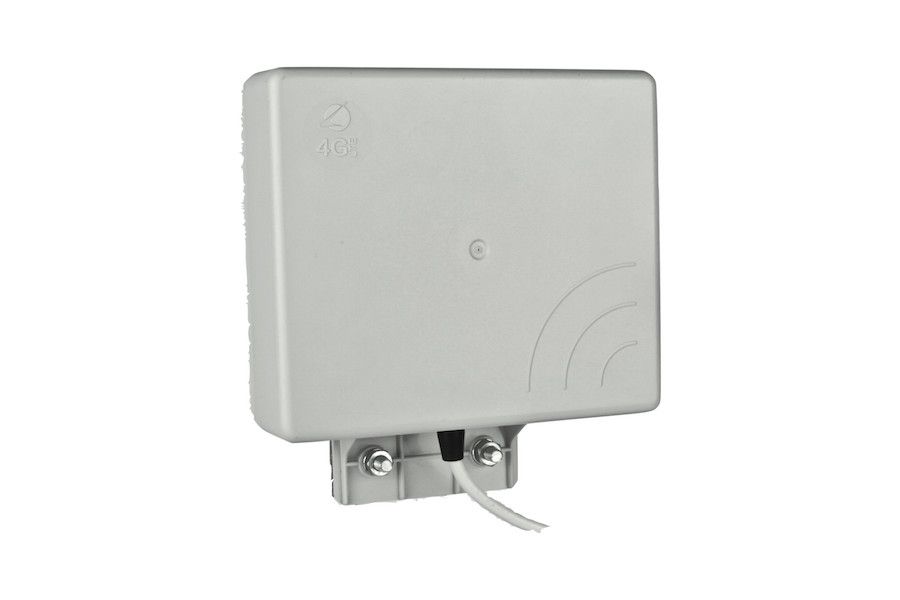

COMPACT DIRECTIONAL 4G Full LTE Antenna 5m SMA m - P/N 8610144

COMPACT DIRECTIONAL 4G Full LTE Antenna 5m SMA m
MULTIBAND DIRECTIONAL 4G antenna
Directional extended band high gain antenna. An exclusive combined radiating element allows to have a high gain on all bands, high directionality ,high Front / Rear ratio and compact dimensions. Complete coverage of LTE band, LTE 800 + LTE 2600, as well as GSM, DCS, UMTS and WLAN makes it unique in its kind. The unique built-in clamp system, allows pole and wall mount without the extra accessories. The ultrasonic welding of the radiating element and the use of UV stabilized thermoplastic material makes this antenna suits extreme weather conditions like high mountains or marine areas. The integrated connection cable, can be customized in length and type of connector.

LTE800, GSM, UMTS, WiFi, Bluetooth, WiLan, LTE2600MULTIBAND DIRECTIONAL 4G antenna

Frequencies
LTE800 790 - 862 MHz
GSM 890-960
DCS 1.710 - 1.880 MHz
UMTS 1.920 - 2.170 MHz
WiFi - Bluetooth 2.400 - 2.500 MHz
WiLan 2.500 MHz
LTE2600 2.600 - 2.700 MHz

Gain
9 dBi
Polarization Verical
Max Power GSM=20W
VSWR < 2.4 for GSM 900, DCS and LTE 800
< 2.0 for GSM 1800 & UMTS, WLAN & LTE
Polarization Vertical
Cable Low Loss (Ø= 5 mm L=5mt)
Connector SMA m
Overall dimension 15,5 x 13,5 x 4,6 cm;
Mast(Ø 25÷42 mm) and wall mount
