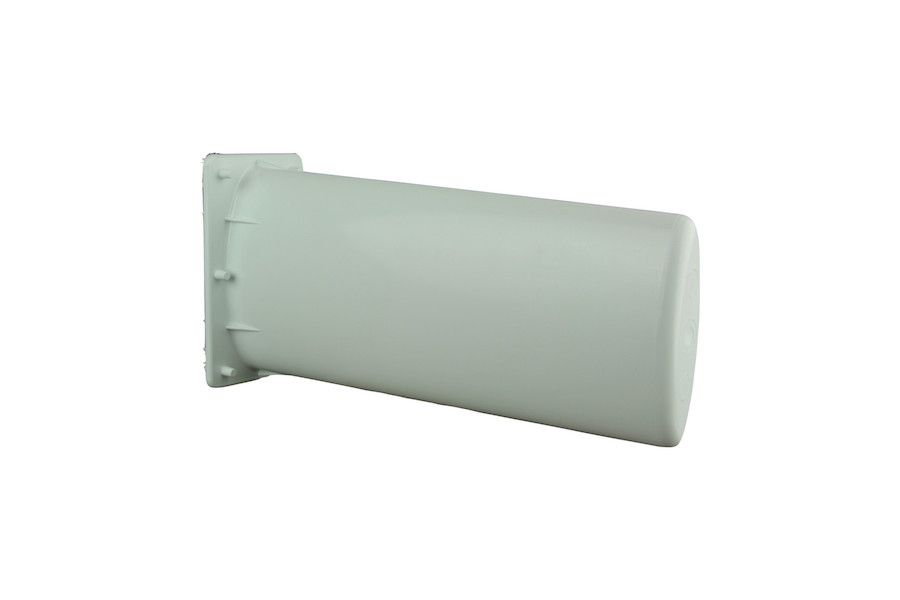

Directional Log Periodic - P/N 8610048
TECHNOLOGY:
GSM / UMTS / LTE Antennas
-
WIFI Antennas
PURPOSE:
M2M / TLC / IoT Antennas

DCS, UMTS, DECT, Bluetooth, WiFi, LOGPERIODIC DIRECTIONAL antenna
Frequencies
DCS 1.710 - 1.880 MHz
UMTS 1.700 - 2.500 MHz
WiFi - Bluetooth 2.400 - 2.500 MHz
Gain
11 dBi for UMTS F/B ratio > 18 dB
Max Power (CW) @ 30°C
50 Watt for GSM 1800 & UMTS
VSWR
UMTS <=2:1
Polarization Vertical
Connector SMA f
Weight 345 g
Overall dimension 34,5 x 13,5 x 7,3 cm
Mast (Ø 25÷42 mm) and wall mount
