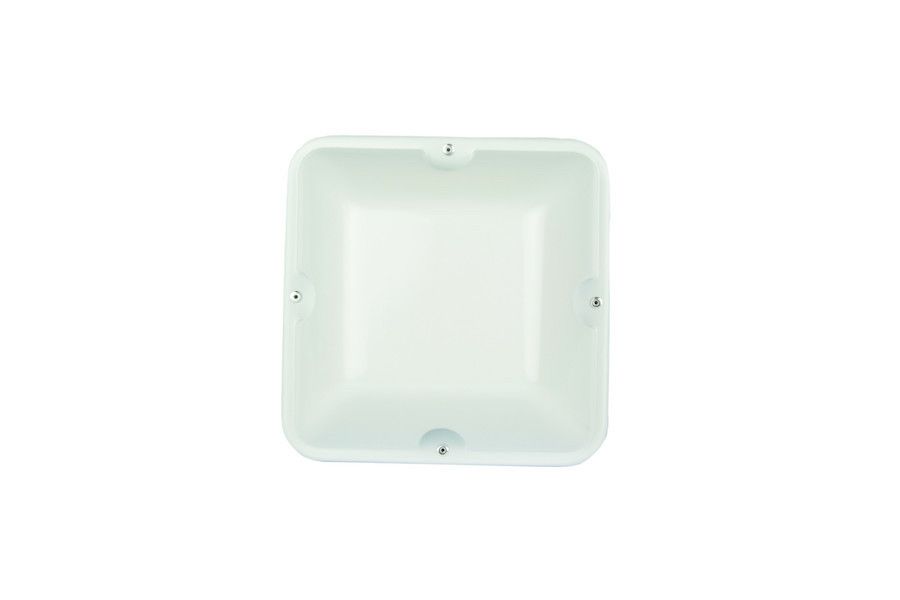

DIRECTIPONAL PLANAR REFLECTOR - P/N 8610029
TECHNOLOGY:
WIFI Antennas
PURPOSE:
M2M / TLC / IoT Antennas

DIRECTIONAL PLANAR REFLECTOR
The Directional Planar Reflector antenna provides high gain in the
direction of the base station or hot-spots; its performance permits
connection where the distance is signicant with the low-impact design
and the small dimension. Its bandwidth permits to be used by dierent
devices in the following frequencies: DECT, UMTS and W-Lan.
Frequencies
Vswr: WIFI<2,5:1
Max power: 20W@30°C (CW)
Connector: SMA F
The Directional Planar Reflector antenna provides high gain in the
direction of the base station or hot-spots; its performance permits
connection where the distance is signicant with the low-impact design
and the small dimension. Its bandwidth permits to be used by dierent
devices in the following frequencies: DECT, UMTS and W-Lan.
Frequencies
- WIFI=1710/2500 MHz
Vswr: WIFI<2,5:1
Max power: 20W@30°C (CW)
Connector: SMA F
