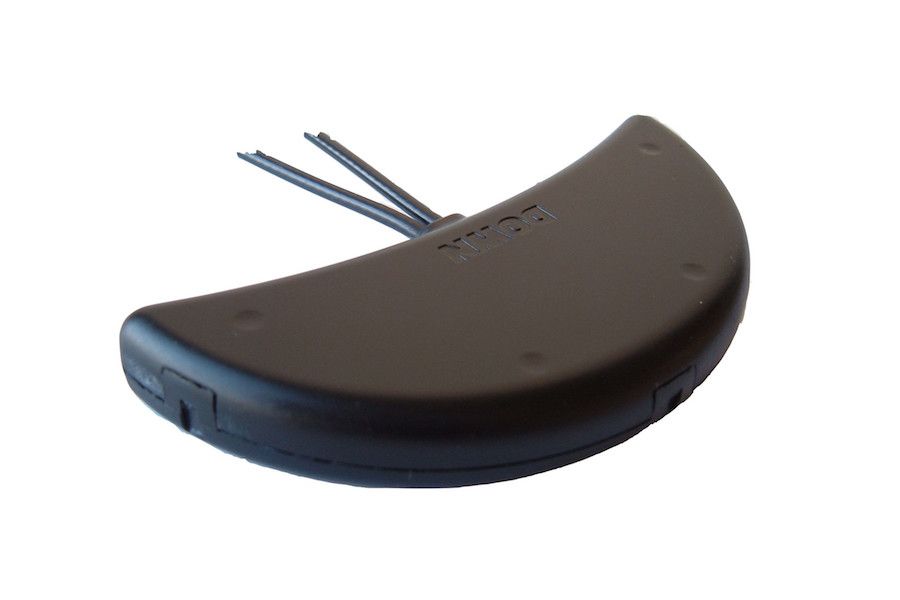

LUNEX (GSM-FME F /GPS-SMB F) - P/N 7730175

LUNEX (GSM-FME F /GPS-SMB F)
LUNEX

Frequencies
  • AMPS 824-894/1850-1990MHz
  • GSM   890-960 /1710-1880 MHz
  • UMTS 1900-2170 MHz
  • GPS 1575,42 ± 1,023MHz
Gain: AMPS 0dBi GSM 0dBi UMTS 0dBi GPS≥ 22 dBi
Max Power: AMPS/GSM/UMTS 4W
VSWR: AMPS <2,5:1 GSM <2:1 UMTS <2:5 GPS <2:1
Power supply: GPS 3-5 V (PHANTOM)
Power consuption: GPS 30mA MAX
Antenna Cable: GSM 3,5m RG174 Connector FME F
Antenna Cable: GPS 3,5m RG174  Connector SMB F
Overall dimensions(LXBXH): L 10cm B 5cm H 1,4cm
Mounting Type: Internal adhesive on glass
