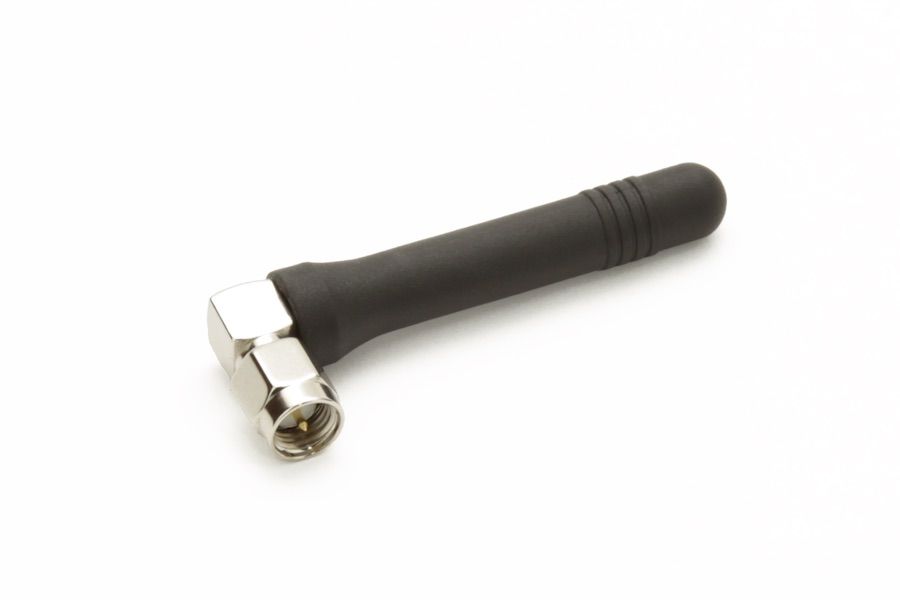

MONOPOLE EVOLUTION TRIBAND SMA m 90° - P/N 8610103
TECHNOLOGY:
GSM / UMTS / LTE Antennas
-
WIFI Antennas
PURPOSE:
M2M / TLC / IoT Antennas

MONOPOLE EVOLUTION TRIBAND ANTENNASMA m CONNECTOR
The omnidirectional Monopole Evolution antenna is designed to use in triband ( 2G / 3G) devices. The very resistant and U.V. stabilized plastic material has the right characteristics for industrial devices like modem for alarm, remote controls and Internet of Things (IoT), Machine To Machine devices.
GSM, UMTS, WiFi, Bluetooth Omnidirectional Antenna
Frequencies
GSM 890-960
DCS 1.710-1.880 MHz
UMTS 1.885 - 2.200 MHz
WiFi - Bluetooth 2.400 - 2.500 MHz
BT 5100-5900MHz
Gain 2,1 dBi
Max Power 2,5W (CW)
VSWR GSM TX < 2:1 RX < 2:1
Connector SMA m90° On Device Mount
Overall dimension ø9,5 mmHeight=61 mm
Weight 12 g
