SHARK DUPLEX (GSM-SMA M /GPS-SMB F) - P/N 7727005

SHARK DUPLEX  (GSM-SMA M /GPS-SMB F)

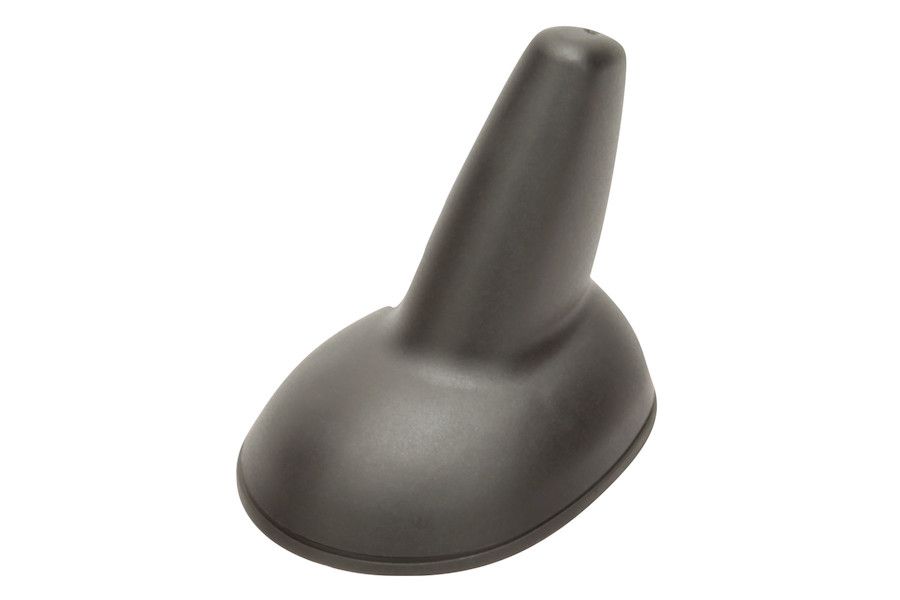

Antenna Shark Duplex

Frequencies
  • GSM 890-960 /1710-1880 MHz
  • UMTS 1900-2170 MHz
  • GPS 1575,42 ± 1,023MHz
Gain: GSM 2dBi UMTS 2dBi GPS≥ 22 dBi
Max Power: GSM/UMTS 4W
VSWR: GSM <2:1 UMTS <2:5 GPS <2:1
Power supply: GPS 3-5 V (PHANTOM)
Power consuption: GPS 30mA MAX
Extention Cable: GSM 5m RG58 Connector SMA M
Extention Cable: GPS 5m RG174 Connector SMB F
Overall dimensions(LXBXH): L 6cmB 4,5cm H 5cm
Mounting Type: Roof mount
Mounting Hole: 15x15mm or ø19
