TRI DAB SHORT ROD - P/N 7677910

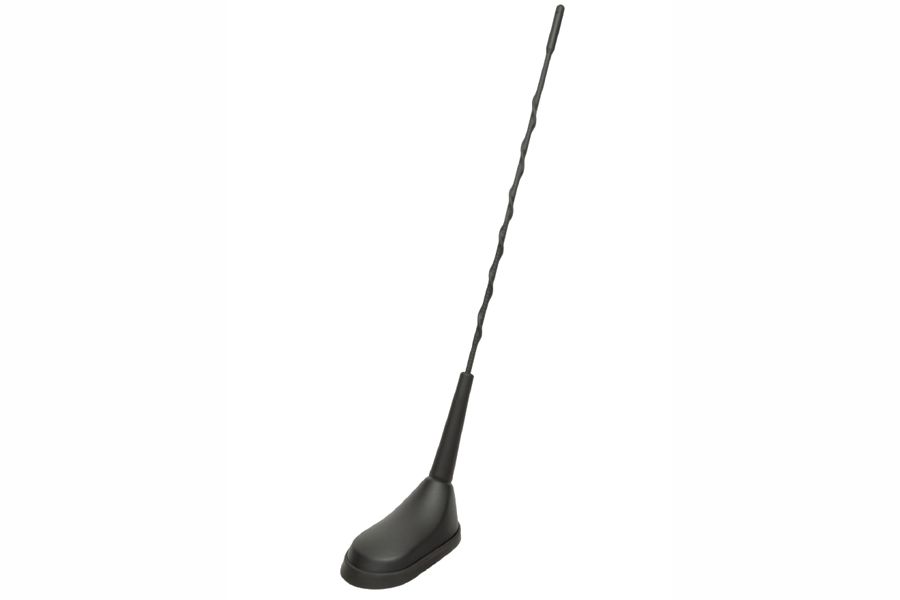

TRI DAB SHORT ROD
Multifunctional roof antenna with short rod for reception of AM/FM, GPS and DAB/DAB+ signals

Technical specification

  • ROD LENGHT: 30 cm
  • AM/FM connector: HC97 female (RAKU 2 female)
  • GPS connector: SMB female
  • DAB/DAB+ connector: SMB female
  • AM/FM extension cable:  not available in the packaging
  • GPS extension cable: L = 5 m / Z = 50 Ohm / C = 100 pF/m
  • DA/DAB+ extension cable: L= 5 m / Z = 50 Ohm / C = 100 pF/m
  • AM/FM power supply: +12 volt dedicated
  • GPS power supply: +3~5 volt Phantom
  • DAB/DAB+ power supply: +12 volt dedicated
  • AM/FM frequency: 0,15-1,71 MHz / 87,5-108 MHz
  • GPS frequency: 1575,42±1,023 MHz
  • DAB/DAB+ frequency: 174-240 MHz (III band)
  • VSWR GPS:  < 2:1
  • VSWR DAB/DAB+: < 3:1
  • GPS gain: 27 dBi
  • DAB/DAB+ gain: 18 dBi
  • AM/FM consumption: 50 mA max
  • GPS consumption: 30 mA max
  • DAB/DAB+ consumption: 50 mA max
  • Mounting: on roof
  • Coachwork drilling: square 15x15 mm, R 2 mm - round 19 mm diameter
