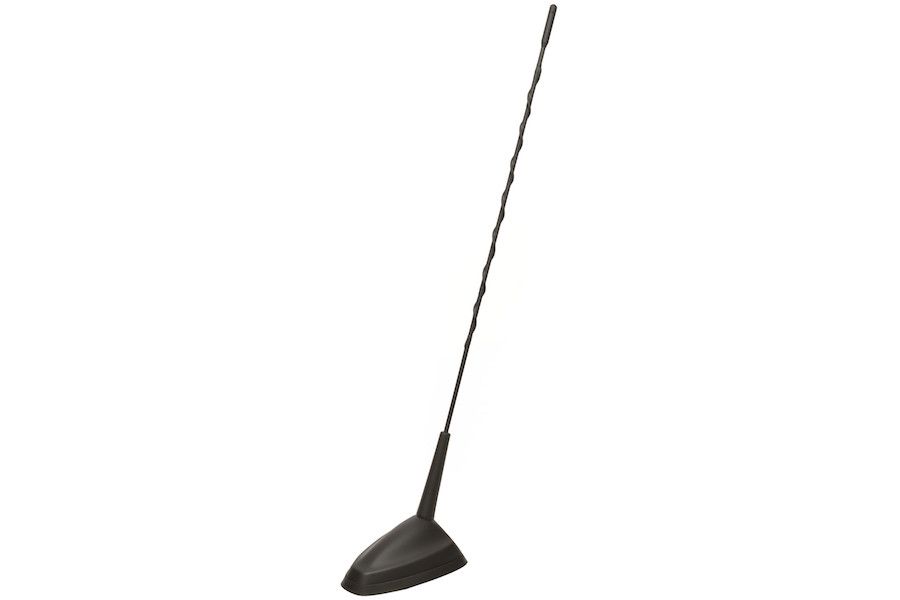

RSA STIL3 TETRA - P/N 7540238
TECHNOLÓGIA:
AM / FM Antennas
-
GPS Antennas
-
GSM / UMTS / LTE Antennas
-
VHF / UHF / TETRA Antennas
ÚČEL:
Blue Lights
RSA STIL3 MAX TETRA
Frequencies:
Max Power: TEL= 8W TETRA= 10W
VSWR: FM≤3 GPS≤1,5 WIFI/BT≤2,5 TETRA≤2,5
Power consuption: GPS = 10/40 mA
Connector:AM/FM=FAKRA M p/n.B + power supply DIN 46247 GPS=FAKRA M p/n. C TETRA=FAKRA F p/n.E TEL=FAKRA F p/n.D
Mounting Hole: ø 19 mm
Frequencies:
- AM/FM=0,15-0,285/0,52-1,71/5,95-6,2/87-108 MHz
- GPS=1575,42±1,023 MHz
- TETRA=380-430 MHz
- TEL=880-915/925-960/1785-1805-1880 MHz
Max Power: TEL= 8W TETRA= 10W
VSWR: FM≤3 GPS≤1,5 WIFI/BT≤2,5 TETRA≤2,5
Power consuption: GPS = 10/40 mA
Connector:AM/FM=FAKRA M p/n.B + power supply DIN 46247 GPS=FAKRA M p/n. C TETRA=FAKRA F p/n.E TEL=FAKRA F p/n.D
Mounting Hole: ø 19 mm
